Honeywell Home

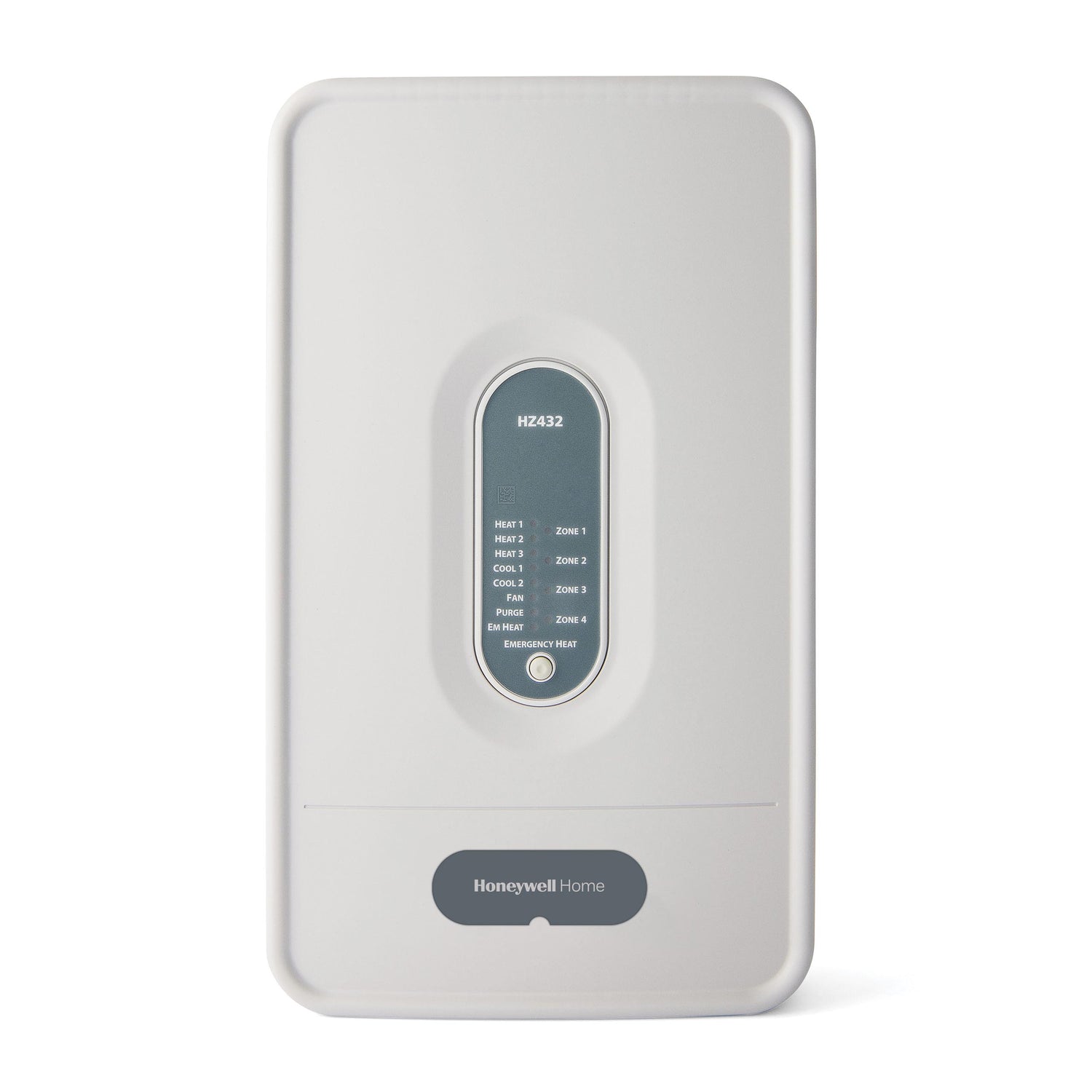

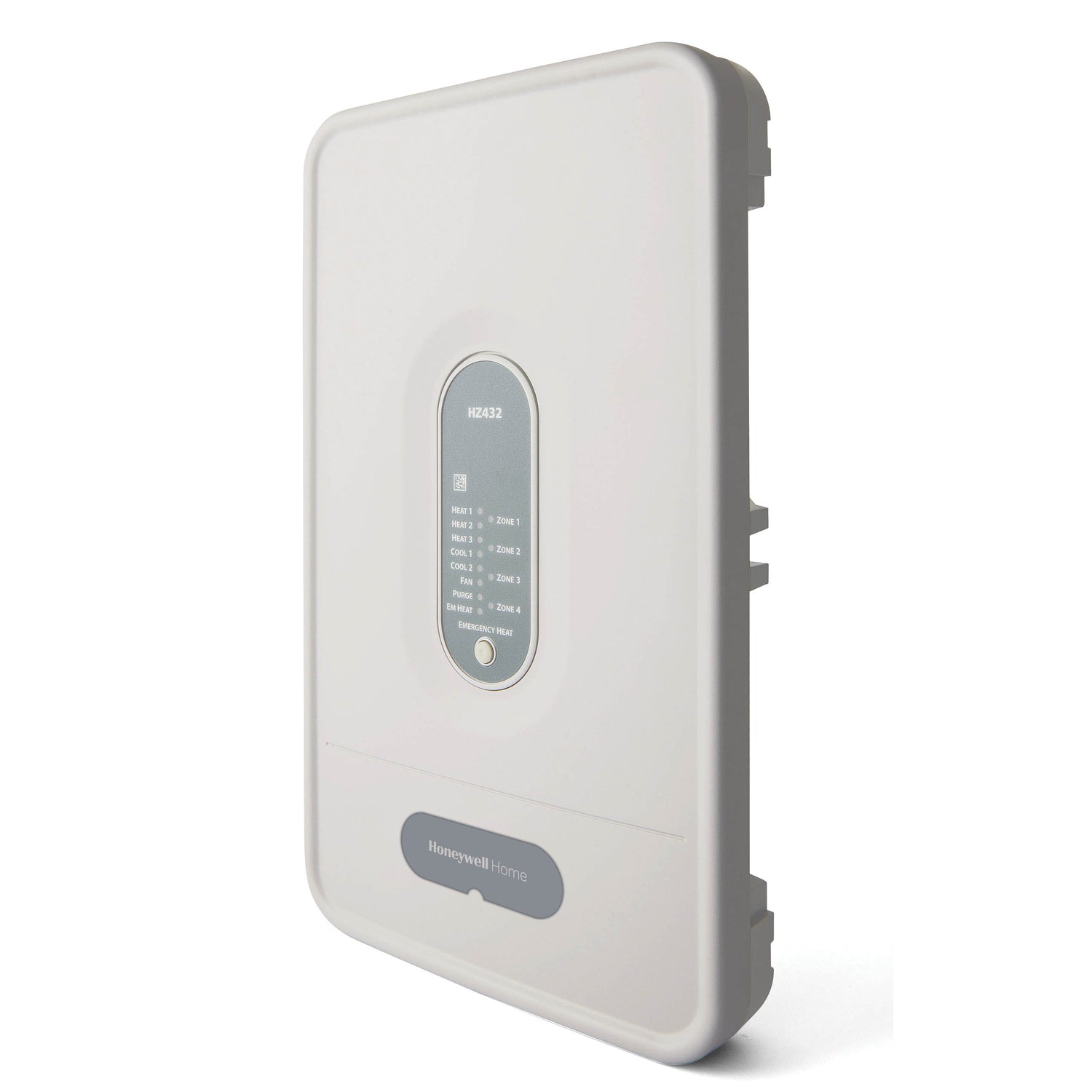

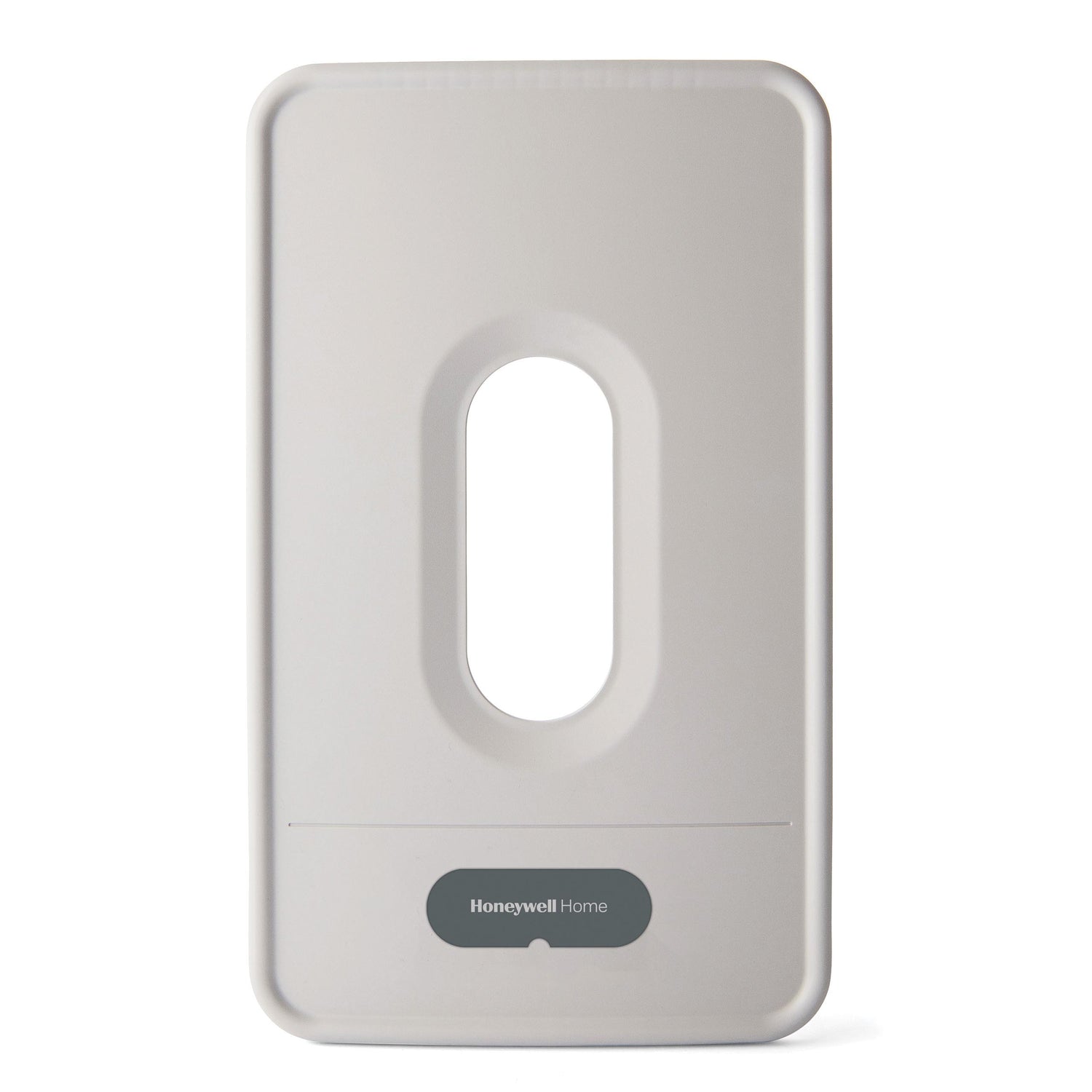

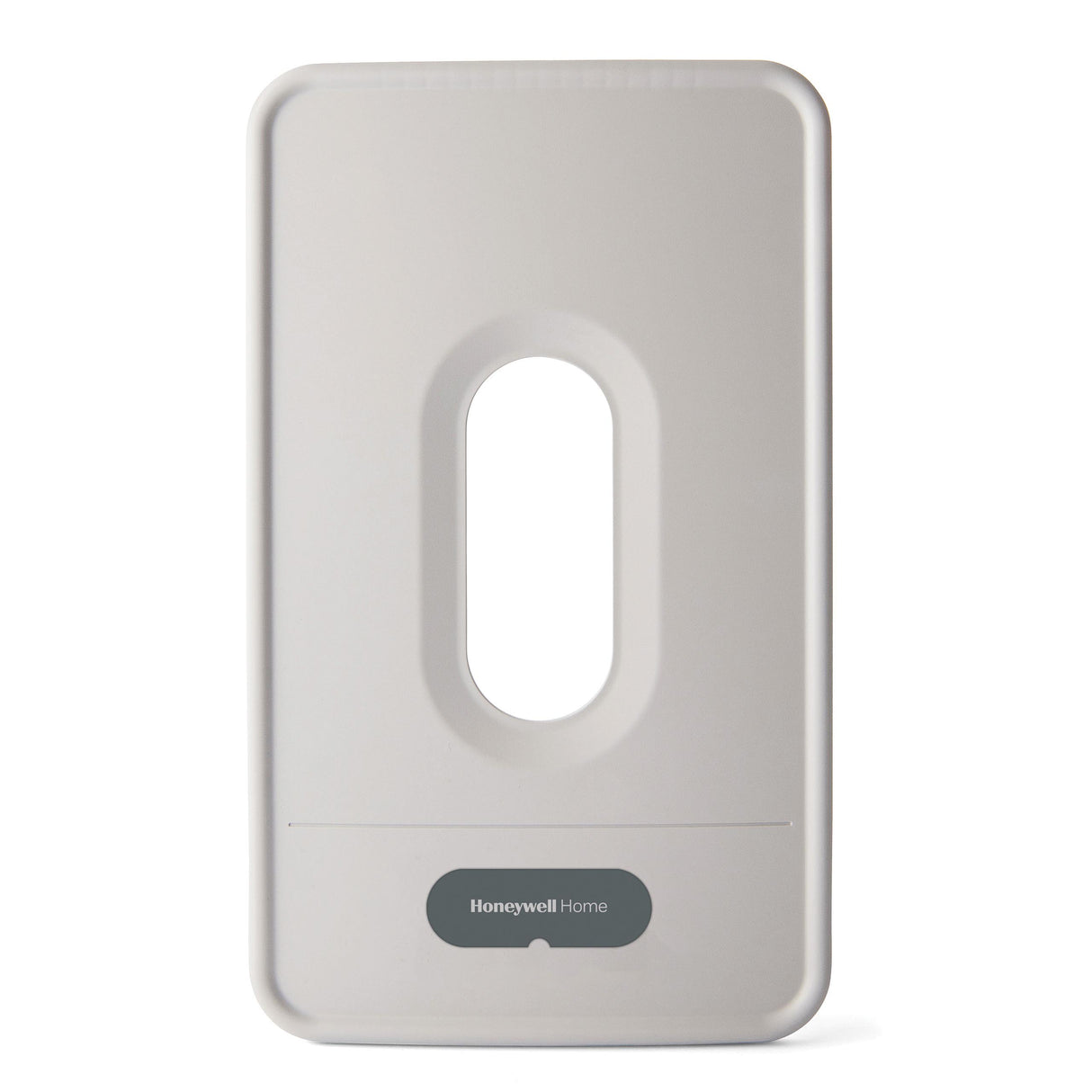

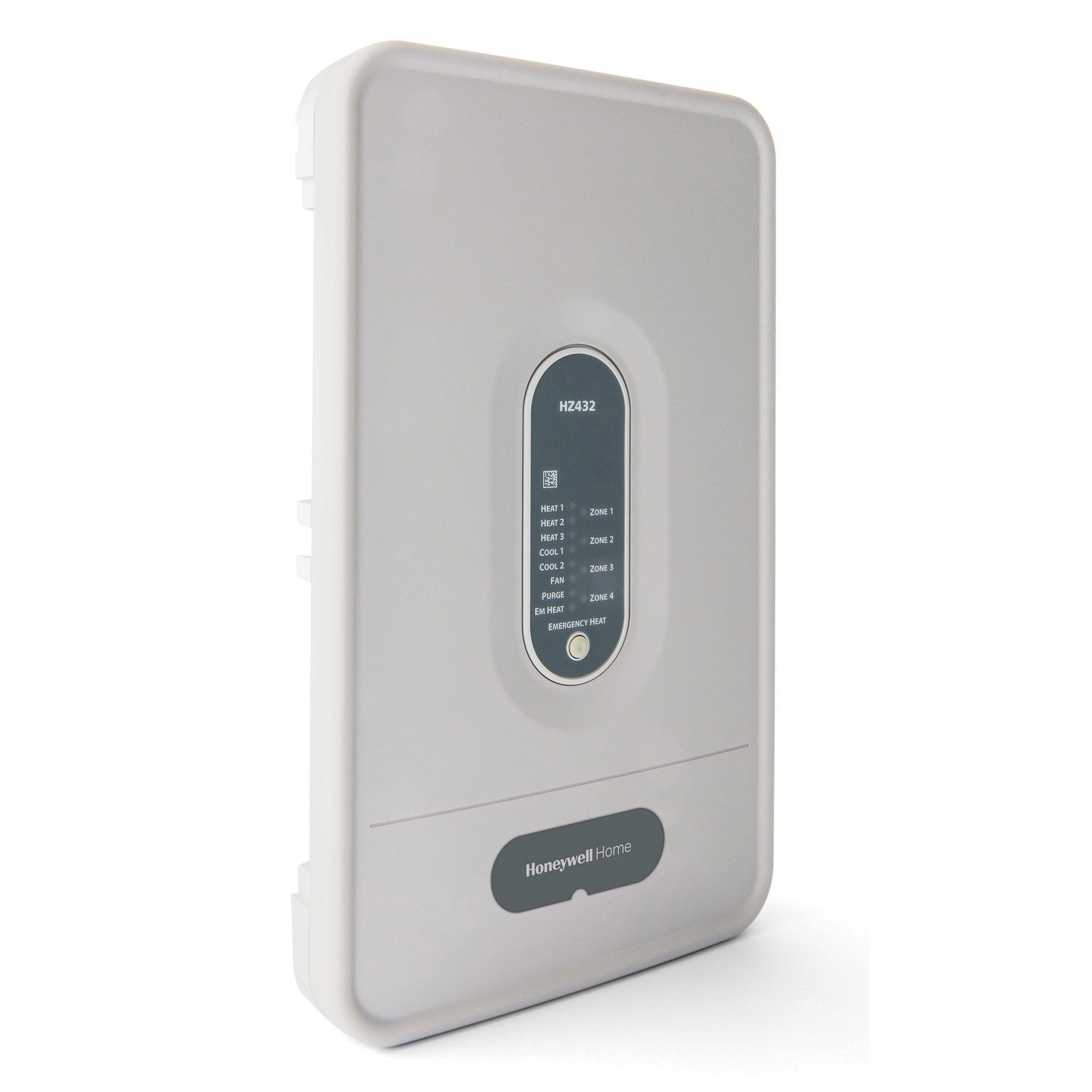

TrueZONE® HZ432 Panel

SKU: HZ432/U

Additional Options

Product variants

Intelligent Temperature Zoning

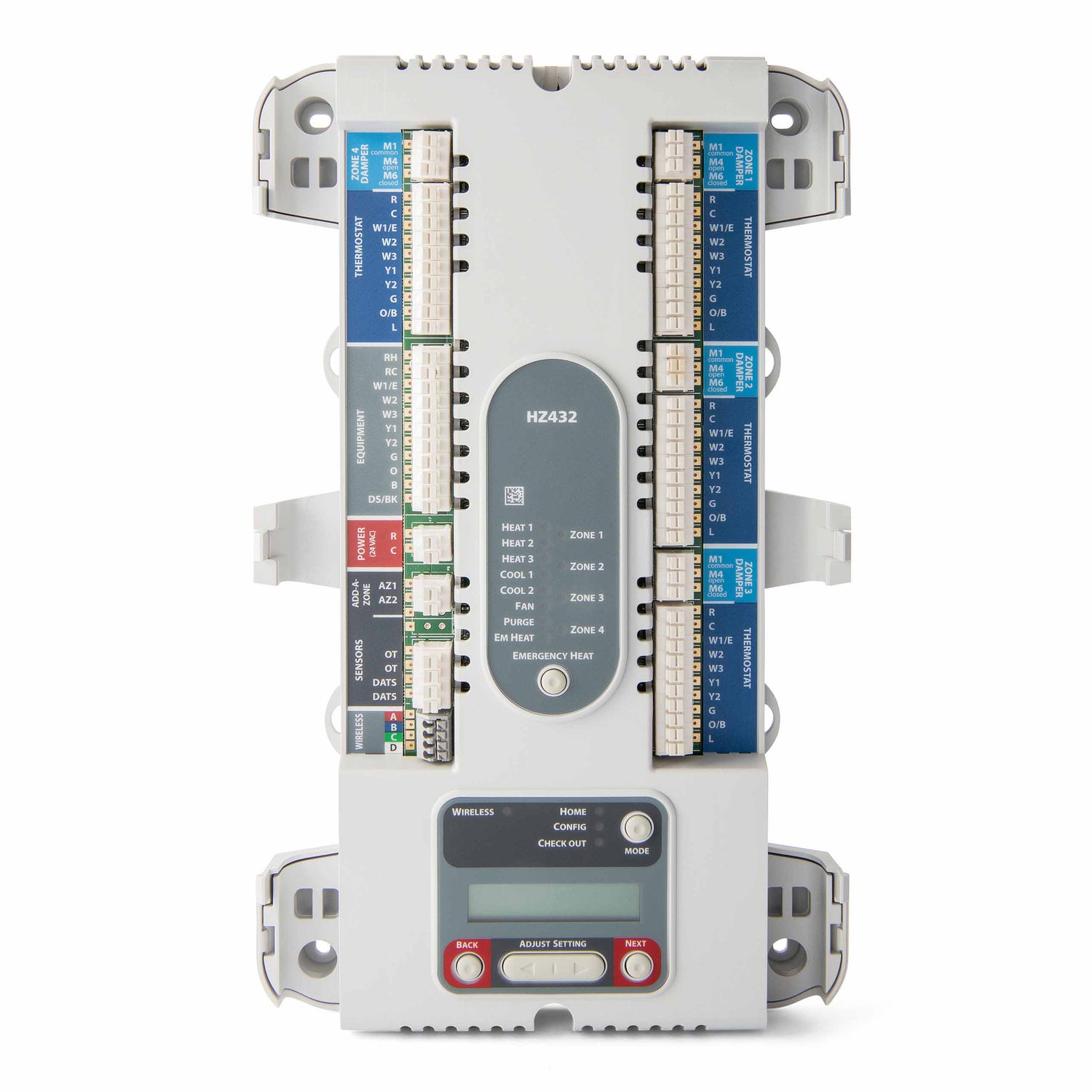

The TrueZONE® HZ432 is a 4 zone panel that can be used to control conventional, heat pump, or dual fuel applications up to 3H/2C. It features robust push terminals, common-sense LEDs, variable-speed fan control, and has a small footprint for mounting flexibility.

Pro Install

GO TO SUPPORT

Pro Install

OVERVIEW
FEATURES
SPECIFICATIONS
GET STARTED
COMPATIBILITY
SUPPORT
REPLACEMENT PRODUCTS
COMPARE PRODUCTS
WORKS WITH
RELATED PRODUCTS
APPS

Product Overview

This TrueZONE® HZ432 Panel is for use in conventional, heat pump or dual fuel applications. With Intuitive Installer Setup, the easy-to-follow, digital display uses real language to guide users through four easy steps. It also comes with a Standard Checkout Procedure.

Other features include:

Robust Push Terminals
Variable-Speed Fan Control
Discharge Air Temperature Staging
Advanced Dual-Fuel Operation
Easy-To-Use Checkout Mode
RedLINK™ enabled for up to 4 wireless zones when used with THM4000R1000 Wireless Adapter and RedLINK FocusPRO, VisionPRO, or Prestige thermostats
Controls up to 3 Heat/2 Cool conventional or heat pump
Controls up to two stages compressor and two stages fossil fuel in dual fuel mode

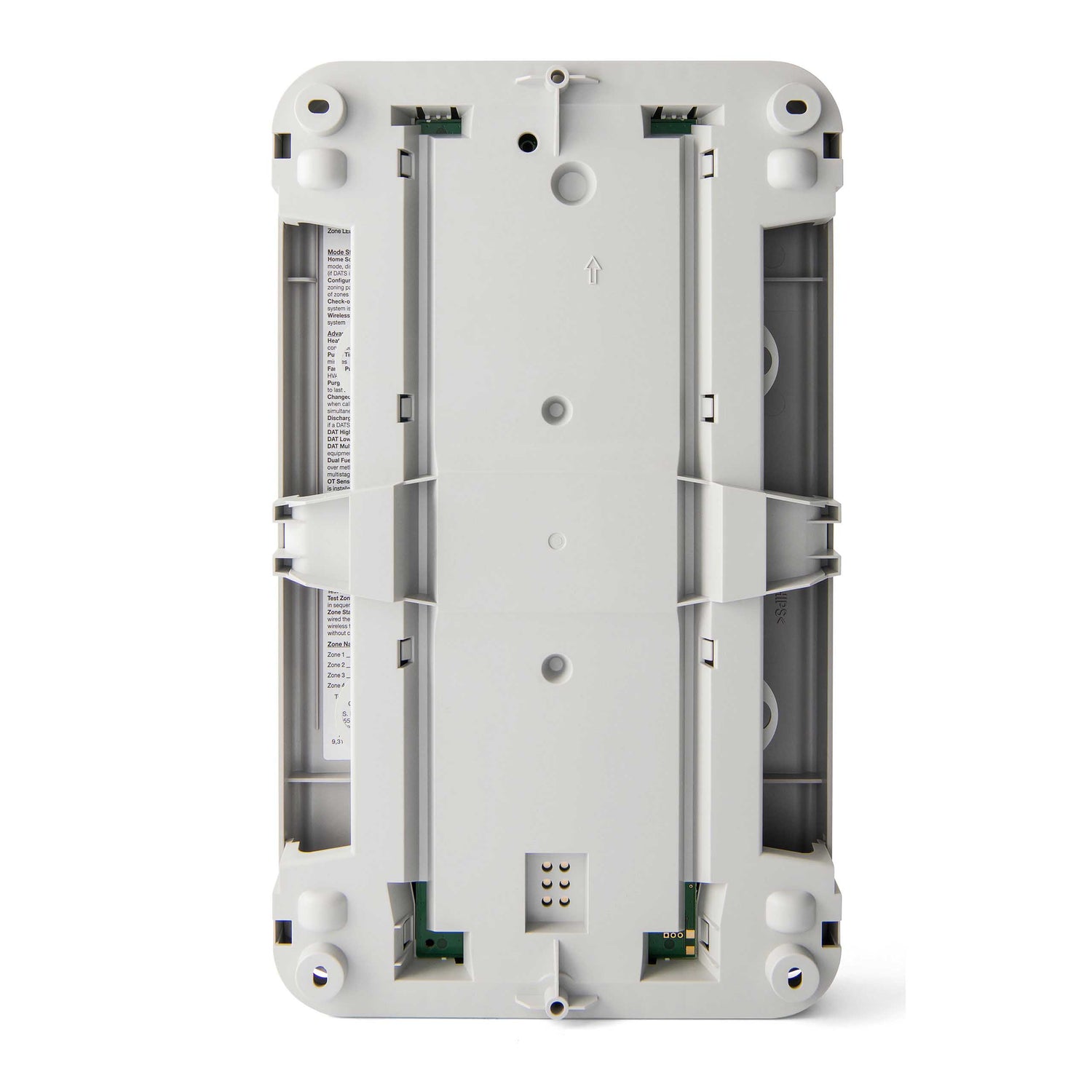

Mounts on wall, stud, or return duct

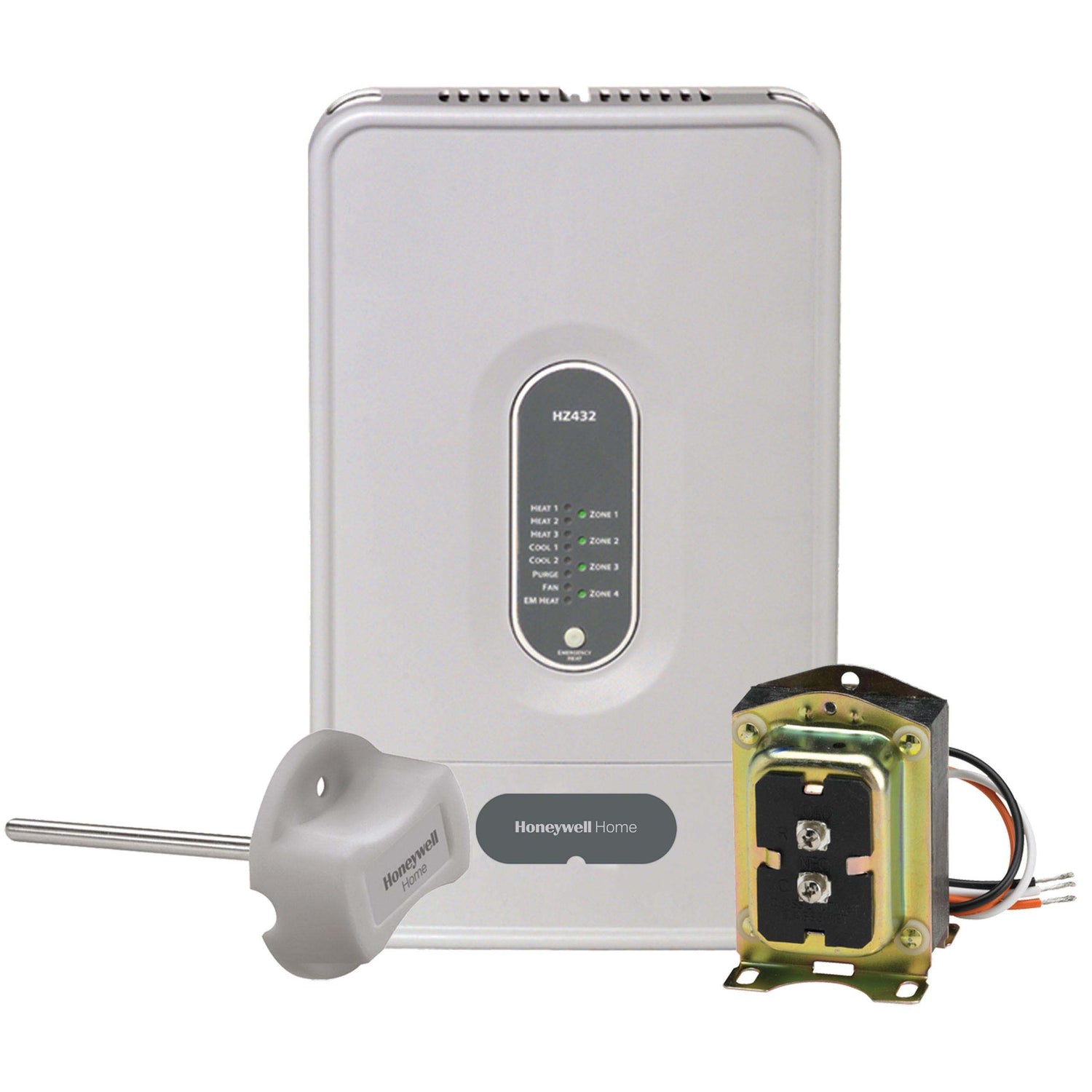

Kits include HZ432 Zone Panel, Transformer and Discharge Air Sensor

Specifications

Auto Changeover	Yes
Compatible Sensor	Discharge Air Temperature Sensor; Outdoor Temperature Sensor
Display Type	Not Applicable
LED Functions	Stage of heat and damper state
Stages	3 Heat/2 Cool
Product Height	13.42 in
Product Length	8 in
Product Width	1.86 in
Warranty	5 Years
